Product Details:
|
| Working Speed: | 35m/min | Max Size: | 1000*600mm |
|---|---|---|---|
| Min Size: | 140*120mm | Carton Paper Thickness: | 500-800g/m² |
| Cardboard Thickness: | 0.8~4mm | Machine Dimension: | L2050*W1520*H1350mm |
| Machine Weight: | 1250kg | ||
| Highlight: | Automatic V Groove Cutter Machine,Phone Case V Groove Cutter Machine,cardboard grooving machine 35m/min |
||

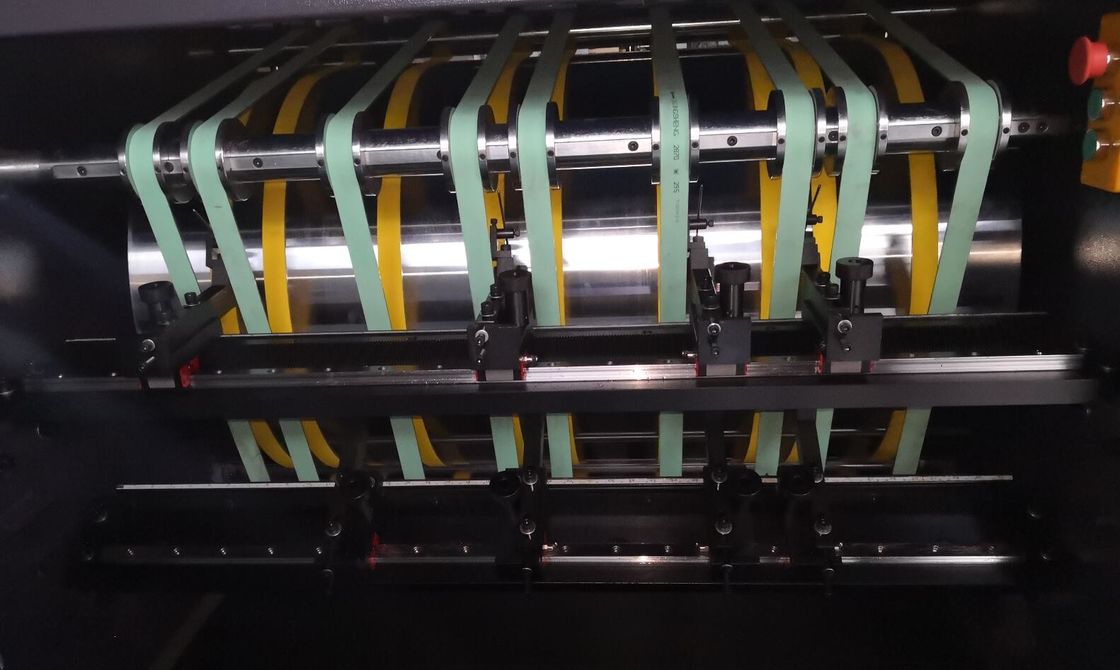

The Newest Automatic Cardboard Grooving Machine For Cell Phone Case
Choose the blade shelter according to the grooving angle. 8 blade shelter are attached with the machine, four for 90° (adjustable from 80°-115°), four for 120 ° (adjustable from 115-140°).
| Product name | The Newest Automatic Cardboard Grooving Machine For Cell Phone Case |
|
Machine model
|
LS-1200B
|
|
Quantity of groove at a time
|
8 slots
|
|
Working speed
|
40m/min(100-200pcs/min)
|
|
Cardboard size
|
140*120-1000*600mm
|
|
Cardboard thickness
|
0.8-4mm
|
|
Motor power
|
2Kw/380v
|
|
Machine dimension
|
L2050*W1320*H1350mm
|
|
Machine weight
|
1250kg
|
