Product Details:
|
| Product Name: | Book Cover Positioning Machine For Book Cover Case Making And Rigid Box Paper Gluing | Colour: | Black & White |
|---|---|---|---|
| Type: | Multi-Function Gluing Machine | Working Speed: | 12110 Pcs/day |
| Application: | Rigid Box/hard Cover/Case Positioning | Dimension(L*W*H):: | L5984*W3180*H2106 |
| Weight Of Machine: | 2090kg | Power: | 380V |
| High Light: | Book Cover Positioning Machine,Positioning Machine 12110pcs/D,H2106mm Box making machine |
||

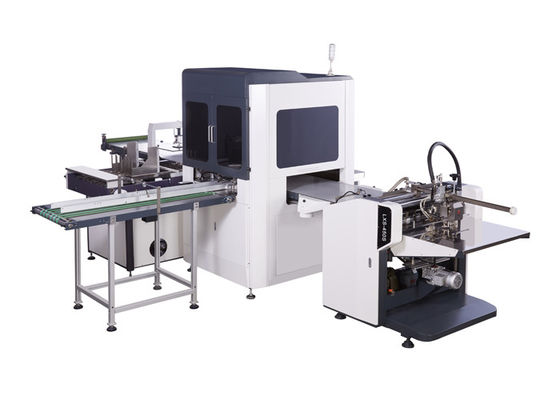

LS-450plus Box and book cover positioning machine for book cover/ case / box
Book Cover Positioning Machine For Book Cover Case Making And Rigid Box Paper Gluing
Introduction:
LS-450plus Box and book cover positioning machine is a core parts for rigid box production. It is widely applied since 2018.

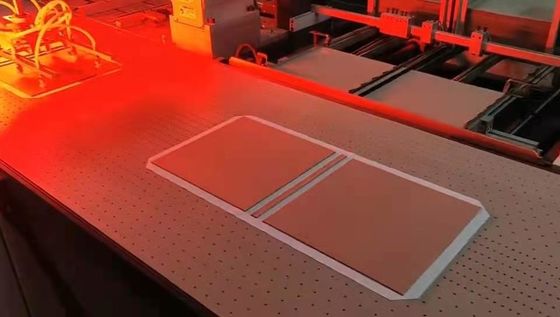

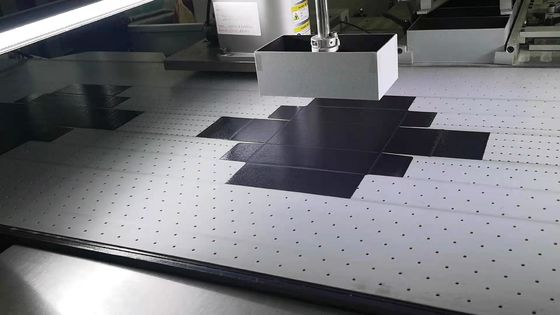

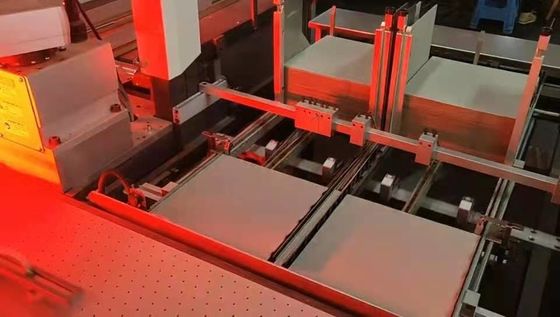

As the visual positioning has stable and high positioning accuracy than manual pasting. this machine has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes.
So now the visual positioning has been applied in the production of gift box, shoe box, Samsung mobile phone box, cosmetic box, Pandora ring box, jewelry box, tea box etc. It is also able to positioning the hardcover, some customer able to using visual positioning for small case order.LS-450 Plus is a dual functional visual positioning machine. It is able to positioning the rigid box and hardcover. The working model able to change by one button. The visual positioning program is able to be upgraded.
7. Panasonic servo motor feeding system.
8. Mitsubishi robotic arm
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample production testing support.
* Factory visit.
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
