Product Details:
|
| Product Name: | Hardcover Making Machine Wrapping Paper Lining Machine And Easy To Operate | Type: | Multi-function Box Machine |
|---|---|---|---|
| Automatic Grade: | Automatic | Working Speed: | 15-40 Pcs/min |
| Application: | Rigid Box Making | Dimension(L*W*H):: | L5987*W3180*H2110 |
| Highlight: | L5987mm Hardcover Making Machine,W3180mm Hardcover Making Machine,H2110mm Paper Lining Machine |
||
Hardcover Making Machine Wrapping Paper Lining Machine And Easy To Operate
Introduction:

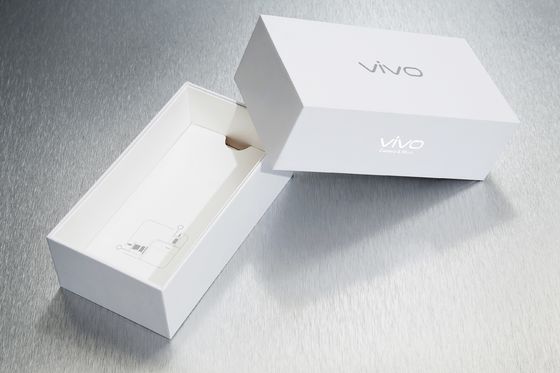

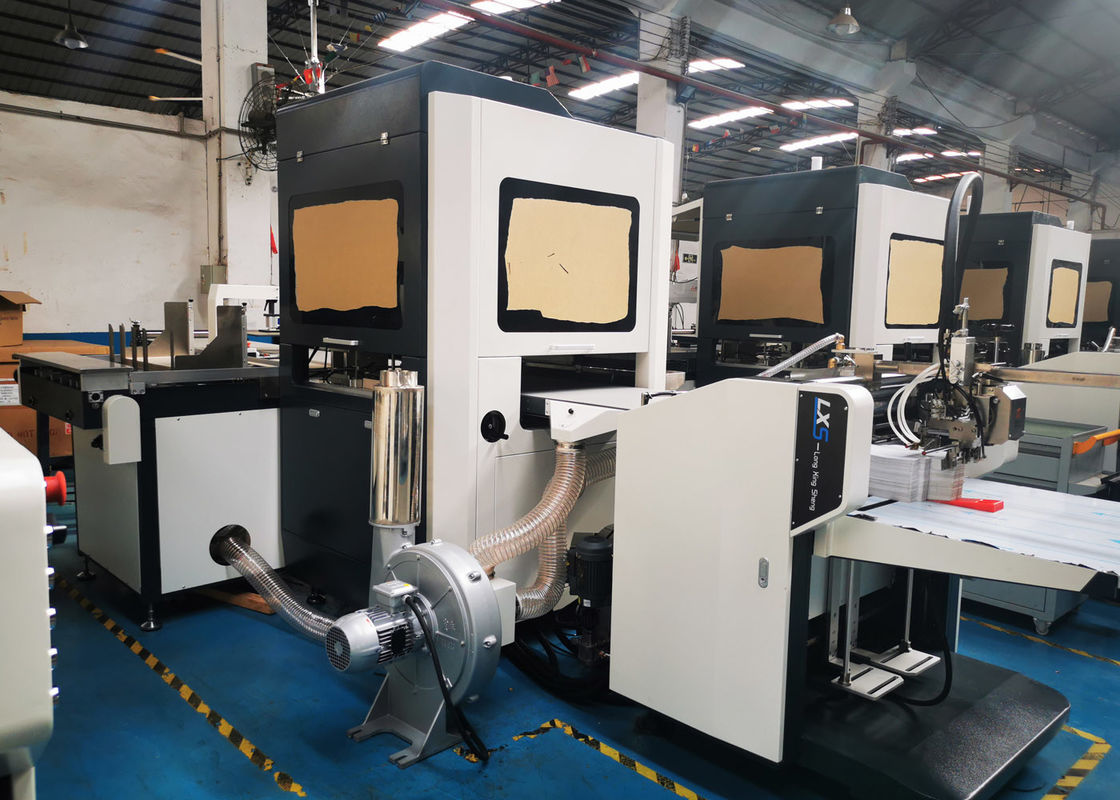

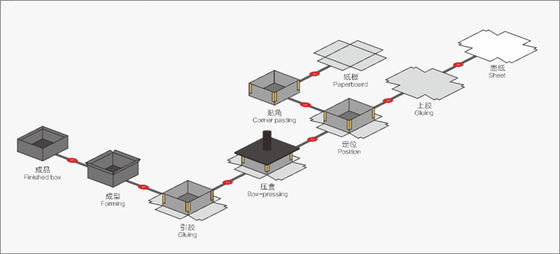

LS-450plus Visual positioning machine is used to making hardcover, rigid box, gift box, it can glue cover paper and paste the inner box or cardboard on the paper, and press them together. It is suitable for making book shape boxes, because it not only can make square box, but also can make hardcover, so we can save cost for investing machine at firstly, this machine is really a suitable model for starting rigid box making business.
The working model able to change by one button. The visual positioning system is able to be upgraded freely when we update the program.
7. Panasonic Servo motor feeding system.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have our own R&D department, all the programs are designed and developed by our engineers, which can be upgraded when needed. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
