Product Details:
|
| Product Name: | Cell Phone Boxes Production Line With Easy Operation System And Change Model | Colour: | Black & White |
|---|---|---|---|
| Type: | Rigid Box Packaging Machine | Warranty: | 1 Year |
| Working Speed: | 15-40 Pcs/min | Application: | Rigid Box/hard Cover/Case Positioning |
| Dimension(L*W*H):: | L5980*W3180*H2100 | Weight Of Machine: | 1850kg |
| Automatic Grade: | Automatic | Certification: | CE, ISO |
| Highlight: | Cell Phone box production line,H2100mm box production line |
||

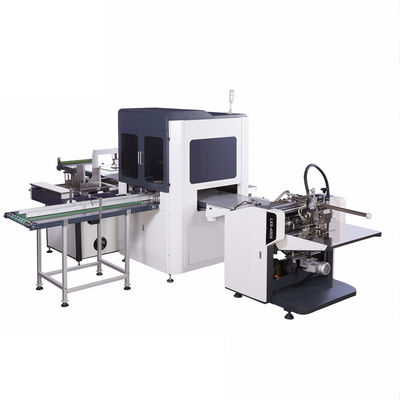

Cell Phone Boxes Production Line With Easy Operation System And Change Model
Introduction:
Cell Phone Boxes Production Line focus on making gift box, shoe box, cell phone boxes, mobile phone box, perfume boxes, which is an important parts for rigid box production. It is widely applied since 2017.
As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes.
Nowadays, the visual positioning has been applied in the production of rigid box, gift box, shoe box, cellphone box, cosmetic box, ring box, perfume box, tea box etc.
The working model able to change by one button. The visual positioning system is able to be upgraded. Whole line able to be upgraded to fully automatic line if need.
6. Panasonic Servo motor feeding system.
7. Storage function for the positioning part, easy to adjustment
Two 10-megapixel cameras can capture tissues in a wide range to improve accuracy
Can handle different colors of cover paper, such as black, white, red, green, blue etc.
Local Language Operation System:Local language operation system avialable, including Korea, Vietness, Spanish, Russian,Turkish etc.
| Type | LS-450B |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size |
L430*W350*H100mm |
| Min box size | L80*W65*H15mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 6.8kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-35 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Our online-service:
We will create a Wechat group to provide online service, including one or two engineer inside. If machine has problem during the warranty time which is not caused by wrong operation, buyer shall send video or pictures so that seller can figure out the exact problem. What‘s more, seller shall give technical support to buyer.
LS-450B Rigid box visual positioning machine focus on making gift box, shoe box, cell phone boxes, mobile phone box, perfume boxes, which is an important parts for rigid box production. It is widely applied since 2017.
