Product Details:
|
| Product Name: | LS-450plus Box & Hardcover Positioning Machine For Making Gift Box, Cellphone Box, Paper Box | Warranty: | 1 Year |
|---|---|---|---|
| Working Speed: | 15-41 Pcs/min | Application: | Rigid Box/Case Positioning Machine |
| Dimension(L*W*H):: | L5989*W3183*H2100 | Weight Of Machine: | 2109kg |
| Highlight: | Hardcover Positioning Machine,Positioning Machine Paper Cellphone Box,Paper Box Machine 41pcs/Min |
||

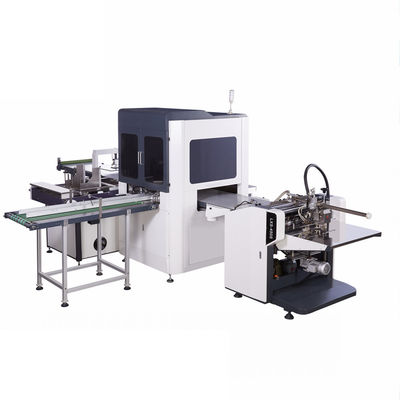

LS-450plus Box & Hardcover Positioning Machine For Making Gift Box, Cellphone Box, Paper Box
Introduction:
LS-450plus LS-450plus Box & Hardcover Positioning Machine For Making Gift Box, Cellphone Box, Paper Box. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.
Feeder feeding can separate the sheets of paper stacked neatly and glue them. It should be noted that there are many kinds of paper, and there will be static electricity between some papers. Double sheets will appear during separation. The paper can be properly kneaded and separated before feeding to reduce the probability of double sheets.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 13 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
