Product Details:
|
| Product Name: | Automatic Visual Positioning Machine For Laminating Box, Paper, And Cardboard | Warranty: | 1 Year |
|---|---|---|---|
| Working Speed: | 15-39 Pcs/min | Dimension(L*W*H):: | L5983*W3189*H2100 |
| Weight Of Machine: | 2120kg | Power: | 380V |
| Highlight: | Automatic Visual Positioning Machine,Positioning Machine Laminating Box,39pcs/min paper Cardboard machine |
||
Automatic Visual Positioning Machine For Laminating Box , Paper, And Cardboard
Introduction:

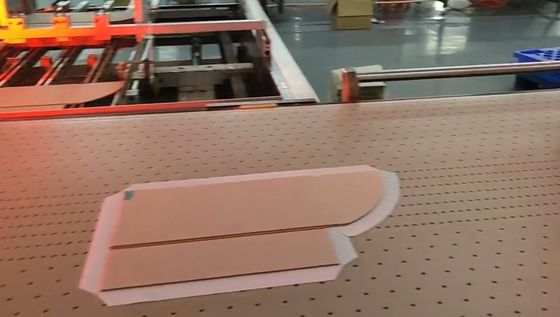

Automatic Visual Positioning Machine For Laminating Box, Paper, And Cardboard. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and game board making.

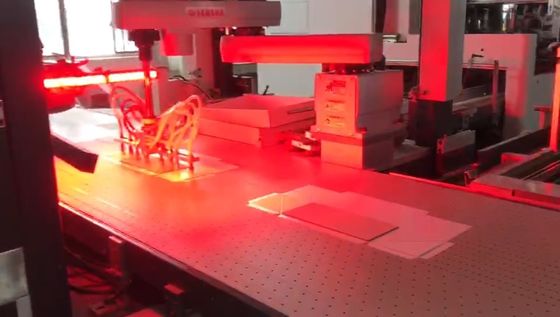

LS-450plus is a multi-function visual positioning machine. It is able to positioning the rigid box and hardcover. also can do paper lining, one machine with many functions, and the working model is able to be changed by one button. The visual positioning system is able to be upgraded. Moreover, this machine also can be upgraded to an automatic line in the future if needed.
This photoelectric eye is an alarm photoelectric eye for rubber roll paper, and the number of paper alarms is set on the feeder parameter setting page of the visual screen. Loosen the countersunk screw of the "conveyor sensor seat", turn the "connecting rod" to make the sensor to the appropriate position of the tissue paper, tighten the countersunk screw, if the adjustment of the sensor does not reach a suitable position, you can still pass Loosen the "machine screw" and turn the "adjustment plate" to adjust, to ensure that it can sense various colors of tissue. Before the machine runs normally, press the "SET" button of the sensor. When the machine is running normally, if it does not sense that the paper reaches the alarm number set by itself, the machine will automatically alarm.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |

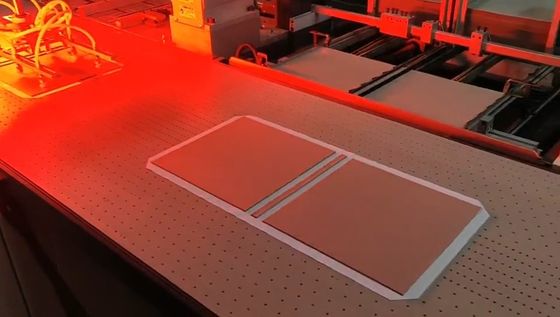

| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
