Product Details:
|
| Product Name: | Multi-Function Case Positionining Machine For Rigid Box & Hardcover & Case With Short Setting | Application: | Rigid Box/Case Positioning |
|---|---|---|---|
| Working Speed: | 12000 Pcs/day | Warranty: | 1 Year |
| Colour: | Black & White & Yellow | Type: | Multi-Function Box/case Machine |
| Dimension(L*W*H):: | L5984*W3180*H2103 | Weight Of Machine: | 2105kg |
| Highlight: | Multifunction Rigid Box Machine,Positionining Rigid Box Machine,ISO9001 Hardcover box machine |
||
Multi-Function Positionining Machine For Rigid Box & Hardcover & Case With Short Setting
Introduction:
Multi-Function Positionining Machine For Rigid Box & Hardcover & Case With Short Setting. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.
Nowadays, the visual positioning machine has been applied in the production of rigid box, gift box, shoe box, cellphone box, cosmetic box, ring box, book cover, case, hard cover etc.

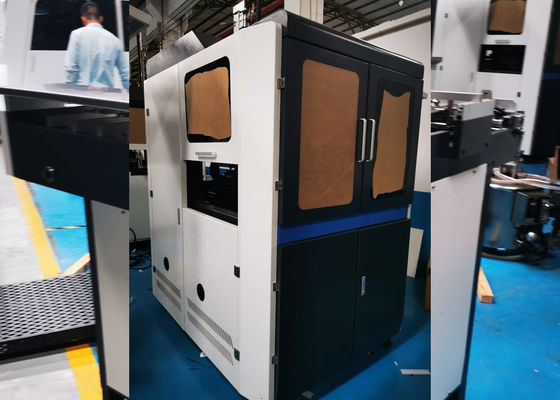

LS-450plus is a multi-function visual positioning machine. It is able to positioning the rigid box and hardcover. also can do paper lining, one machine with many functions, and the working model is able to be changed by one button. The visual positioning system is able to be upgraded. Moreover, this machine also can be upgraded to an automatic line in the future if needed.
7. Panasonic Servo motor feeding.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have our own R&D department. Up to now, We have got more than 22 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "simplify box making" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
Contact Person: Ms. Lyla Lyu
Tel: +86 13829162915
