Product Details:
|
| Product Name: | Box Packing Machine For Rigid Box Making, Book Cover Making And Paper Lining | Application: | Rigid Box/Case Positioning |
|---|---|---|---|
| Working Speed: | 15-40 Pcs/min | Type: | Multi-Function Packaging Machine |
| Dimension(L*W*H):: | L5980*W3181*H2107 | Weight Of Machine: | 2109kg |
| Highlight: | Rigid Box Positioning Machine,Positioning Machine 40pcs/min,Box Gluing Machine 40pcs/min |
||

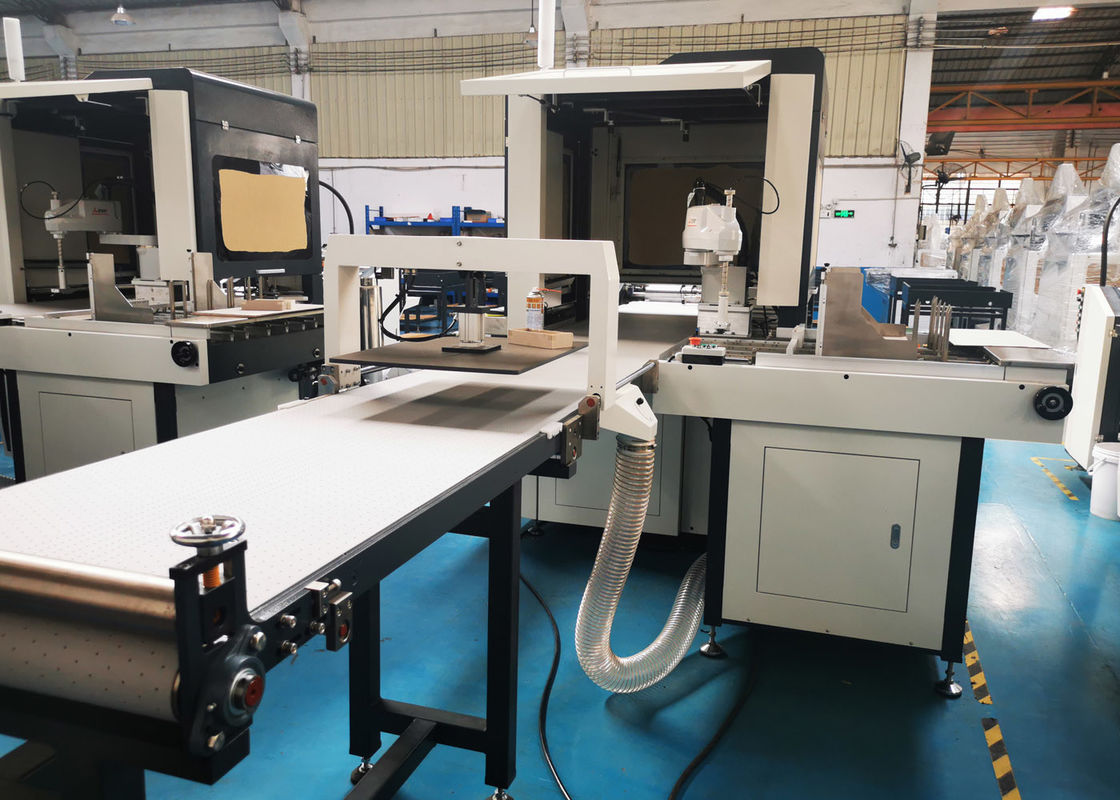

Box Packing Machine For Rigid Box Making, Book Cover Making And Paper Lining
Introduction:
Box Packing Machine For Rigid Box Making, Book Cover Making And Paper Lining. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.
LS-450plus is a multi-function visual positioning machine. It is able to positioning the rigid box and hardcover. also can do paper lining, one machine with many functions, and the working model is able to be changed by one button. The visual positioning system is able to be upgraded. Moreover, this machine also can be upgraded to an automatic line in the future if needed.

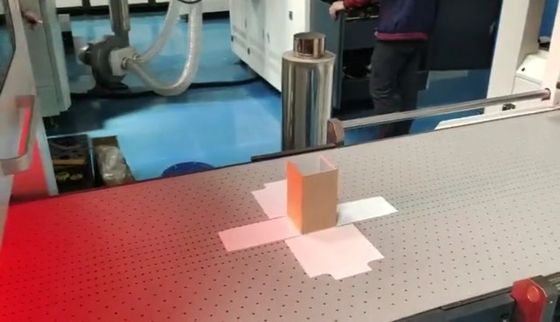

Equipped with dual cameras, the cameras are located on both sides of the central position of the conveyor belt. The camera position has been calibrated before leaving the factory. If there is any deviation, you can adjust the camera position by adjusting the upper camera "mounting plate". After the camera takes a picture, the system recognizes the color difference of the photo for positioning. If the surface paper and the surface paper conveyor belt are similar in color, it can be solved by changing the belt color.
5. Panasonic Servo motor feeding system.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We are one the leader and professional packaging machinery manufacturer in Dongguan, China.
We focus on providing box making solutions to according customers' demand, especially for rigid box making,
such as luxury boxes, jewelry boxes, gift boxes, sweet boxes, shoes boxes, cell phone boxes, perfume boxes etc.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
