Product Details:
|
| Product Name: | Positioning Machine For Packaging Box Making, Paper Gluing And Box Pasting | Working Speed: | 15-42 Pcs/min |
|---|---|---|---|
| Warranty: | 1 Year | Type: | Multi-function Box Machine |
| Power: | 380V | Dimension(L*W*H):: | L5984*W3183*H2101 |
| Weight Of Machine: | 2105kg | ||
| Highlight: | Packaging Box Positioning Machine,Positioning Machine Paper Gluing,H2101mm Box Pasting machine |
||

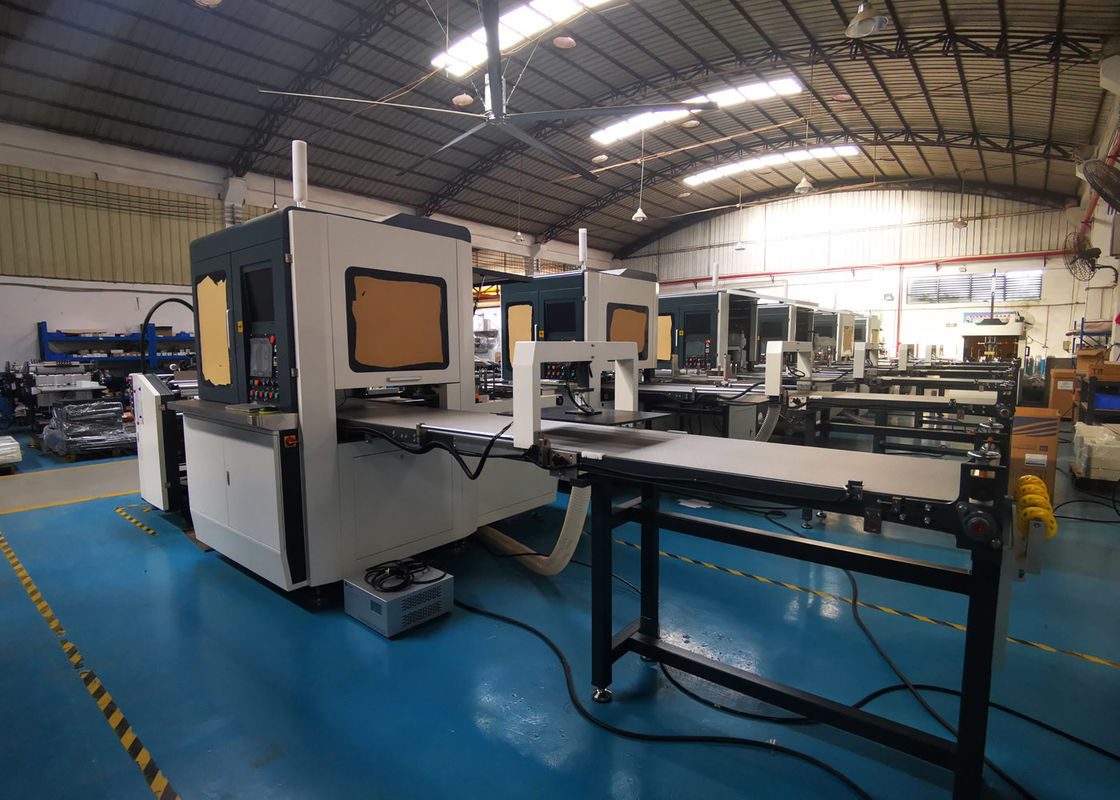

Positioning Machine For Packaging Box Making, Paper Gluing And Box Pasting
Introduction:
Positioning Machine For Packaging Box Making, Paper Gluing And Box Pasting. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.
As the visual positioning has stable and high positioning accuracy than manual positioning. It has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes.
The function of the "paper roller" is to roll up the unpositioned paper on the conveyor belt to prevent the paper from jamming in other positions. By turning the "adjusting hand wheel", the tightness between the "rolling rollers" can be adjusted.
6. Panasonic Servo motor feeding system.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Details communication
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
