Product Details:
|
| Product Name: | Moon Cake Box And Mooncake Book Cover Box Making Machine For Rigid Box & Gift Box | Working Speed: | 15-42 Pcs/min |
|---|---|---|---|
| Warranty: | 1 Year | Type: | Multi-Function Box Packaging Machine |
| Power: | 380V | Weight Of Machine: | 2108kg |
| Highlight: | 42pcs/Min Book Cover Box Making Machine,Mooncake Box Making Machine,42pcs/Min hard cover making machine |
||
Moon Cake Box And Mooncake Book Cover Box Making Machine For Rigid Box & Gift Box
Introduction:
Moon Cake Box And Mooncake Book Cover Box Making Machine For Rigid Box & Gift Box. This machine is also called as gluing and spotter machine. It can finish paper gluing and pasting box on the glued paper automatically, which is widely used for rigid box making, book cover machine, paper lining and even album making.

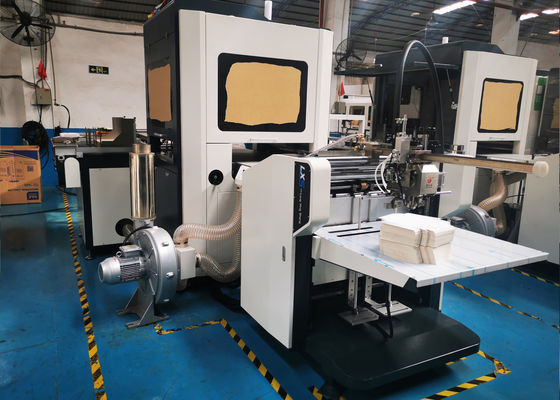

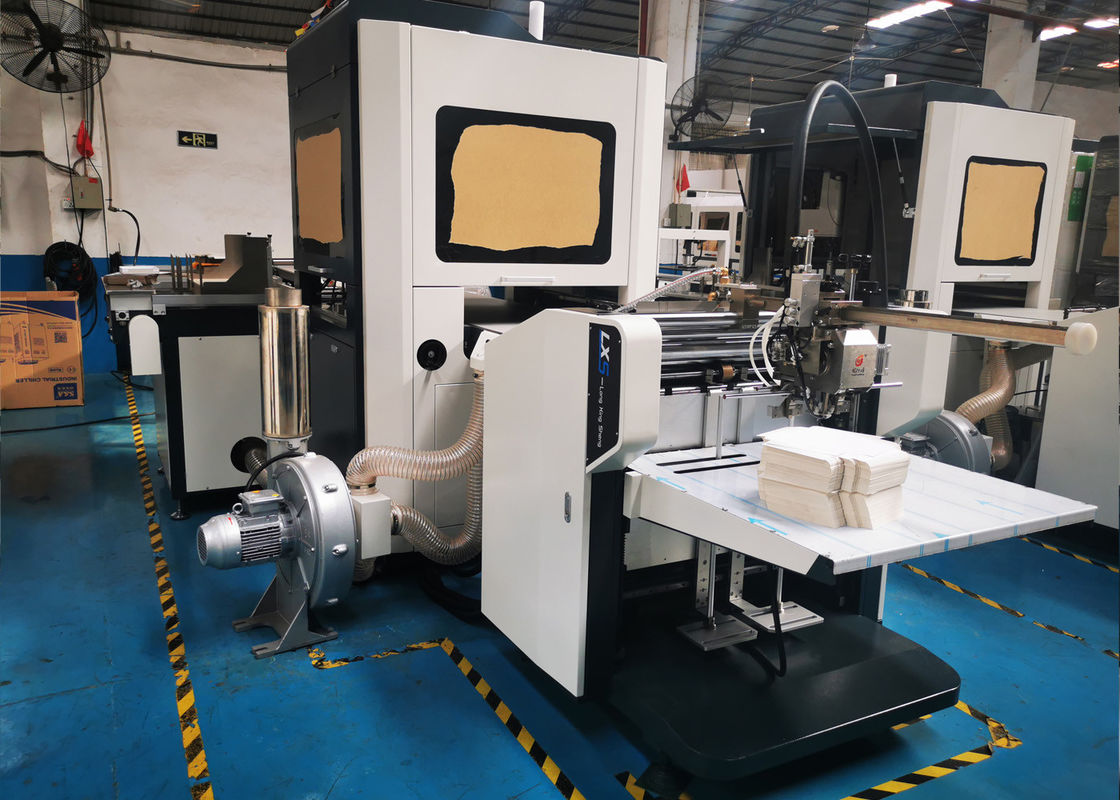

LS-450plus is a multi-function visual positioning machine. It is able to positioning the rigid box and hardcover. also can do paper lining, one machine with many functions, and the working model is able to be changed by one button. The visual positioning system is able to be upgraded. Moreover, this machine also can be upgraded to an automatic line in the future if needed.
Machine positioning part:

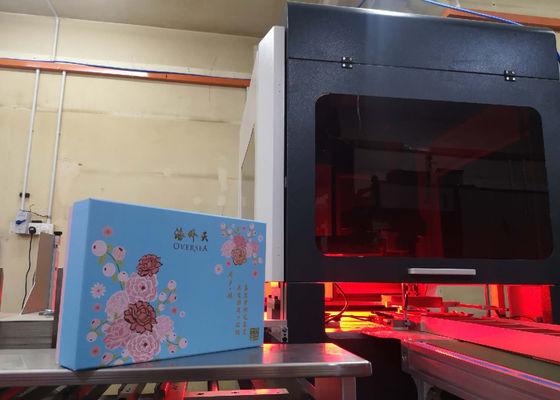

Camera: Located on the top of the conveyor belt, the image of the conveying paper is taken, and the robot takes the box and the positioning is controlled by the system.
Robot arm: Grab the box and accurately position it on the paper.
LED light source: Irradiate on the paper conveyor belt to separate the color of the paper from the conveyor belt to help the camera take pictures and identify.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
Company profile:
Dongguan Longxingjian Intelligent Equipment Co.,Ltd
We are located in world manufacturer city----Dongguan City, Guangdong Province. The former compay name is Dongguan Longxingsheng Machinery Co.,Ltd.
We have independent R&D department. Up to now, We have got more than 20 patents including pratice patents, appearance patents and technology-based patents. We have been specialized in post-press machinery's research, development, manufacturing and selling for more than 15 years. Grooving machine series and rigid box forming series are our main products.
We hold "professional, focus, customer first" as our operating principle, insist on surviving from good quality, improving efficiency from prescise management, developing from creativity. We are committed to spare no effort to become the national brand and contribute our strength in Printing&Packaging industry.
Our service:
Pre-sale service:
* Inquiry and consulting support.
* Sample testing support.
* Factory visit.
* Order confirmation
After-sale service:
* Machine installation and training in customer factory.
* Engineers available to service machinery overseas.
* On-line technology support.
* Free machine parts replacement during warranty.
* Whole life of machine service.
