Product Details:
|
| Product Name: | Pandora Box Making Machine Which Can Also Make Book Shape Box And Hard Cover | Warranty: | 1 Year |
|---|---|---|---|
| Type: | Multi-Function Packaging Machine | Automatic Grade: | Automatic |
| Colour: | Black & White | Speed: | 15-35 Pcs/min |
| Application: | Rigid Box/hard Cover/Case Positioning | Dimension(L*W*H):: | L5980*W3180*H2100 |
| Weight: | 2200kg | Power: | 380V |

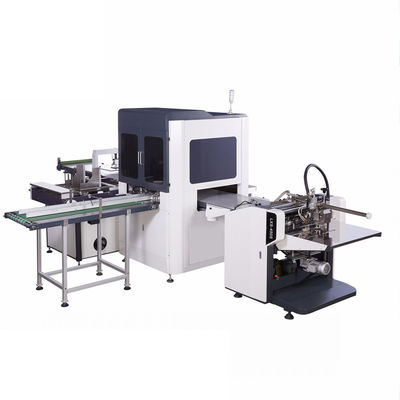

Pandora Box Making Machine Which Can Also Make Book Shape Box And Hard Cover
Introduction:

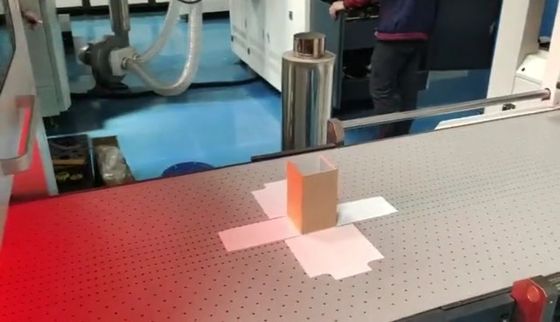

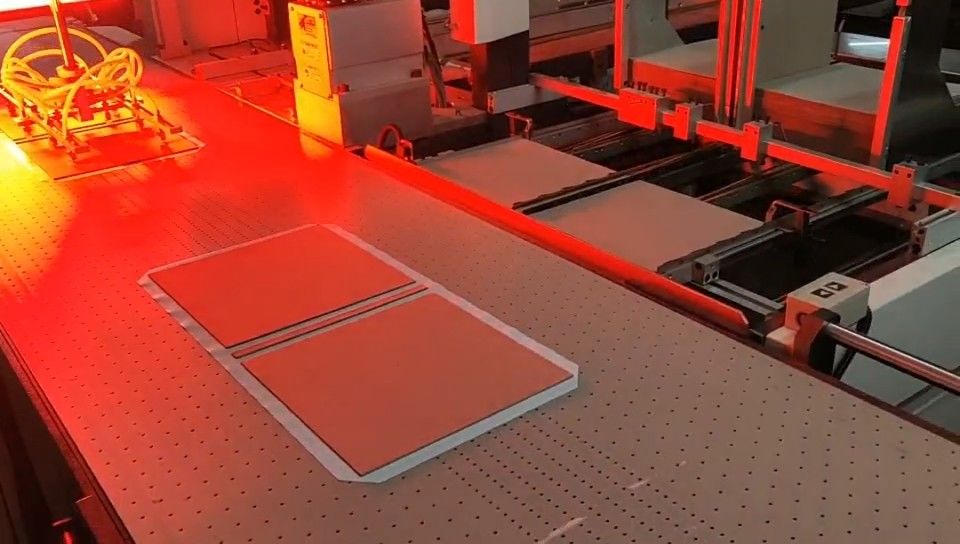

LS-450plus Visual positioning machine is a really important part for rigid box & case production, instead of the hydraulic positioning, the speed and accuracy are both increased than manual positioning.
Besides, it has faster model changing speed than sensor positioning. The fastest setting time of visual positioning part is 7 minutes.
Nowadays, the visual positioning has been applied in the production of hardcover, book cover, book case, rigid box, gift box, shoe box, cellphone box, cosmetic box, Pandora ring box, jewelry box, tea box and so on.
| Type | LS-450plus |
| Paper size (Max) | L800*W600mm |
| Paper size (Min) | L135*W100mm |
| Max box size | L600*W400*H120mm |
| Min box size | L80*W65*H15mm |
| Book cover (Max) | L750*W450mm |
| Book cover (Min) | L150*W100mm |
| Paper thickness | 100-350g/㎡ |
| Paper stacking height | 280mm |
| Motor power / voltage | 7.5kw/380v, 3 phase |
| Heating power | 8kw/380v, 3 phase |
| Air supply | 10L/min 0.6Mpa |
| Working speed | 15-45 sheets/min |
| Machine dimension | L5980*W3180*H2100mm |
| Weight of machine | 2100kg |
1--Efficiently produce perfect hard box covers: achieved with our semi-automatic box gluing equipment
2--Simplify the hard box production process: choose our semi-automatic gluing equipment to do it easily
3--The perfect fusion of precision and speed: unleash the power of our semi-automatic box gluing equipment to create hard box covers
4--Seamless automation, flawless hard box covers: Introducing our semi-automatic gluing equipment
5--Improve packaging standards: Choose our cutting-edge semi-automatic box gluing equipment to improve the quality of hard box covers
6--Explore the potential of hard box cover manufacturing: Experience our advanced semi-automatic gluing equipment
7--Easy assembly, perfect presentation: Revolutionize your hard box cover production with our semi-automatic equipment
8--Speed up hard box cover production: use our high-performance semi-automatic gluing equipment
9--Experience unparalleled efficiency and stability: Our semi-automatic box gluing equipment delivers superior quality for hard box covers
10--From idea to reality: create outstanding hard box covers with our innovative semi-automatic gluing equipment
Remarks:
The maximum and minimum size of the box depends on the maximum and minimum size of the cover paper and the quality of the paper.
The size of the box will affect the speed of the machine.
The production speed of the machine depends on the following factors: raw materials, glue, and the skill of the operator.
The manufacturer does not provide air compressor.
